CocosViewController – How to use Storyboards and Cocos2d V3+

I will write this tutorial in English, so, sorry for the language errors ;)

Some weeks ago I wrote a simple class for Cocos2D v3+ to use Cocos2D and Storyboards called CocosViewController.

CocosViewController is a UIViewController subclass that create CCDirector and put it in the controller view.

So, with this class we can have a Cocos2D view controller inside a Storyboard environment but we can also add UIKit elements above the Cocos2D view.

So, start this little tutorial.

How to use CocosViewController.

Create a new project (or use an existing one, but I recommend you to start with a new one to become familiar with the class) with SpriteBuilder, you can use the latest 1.2 version with Cocos2D v3.2.

cvc_1

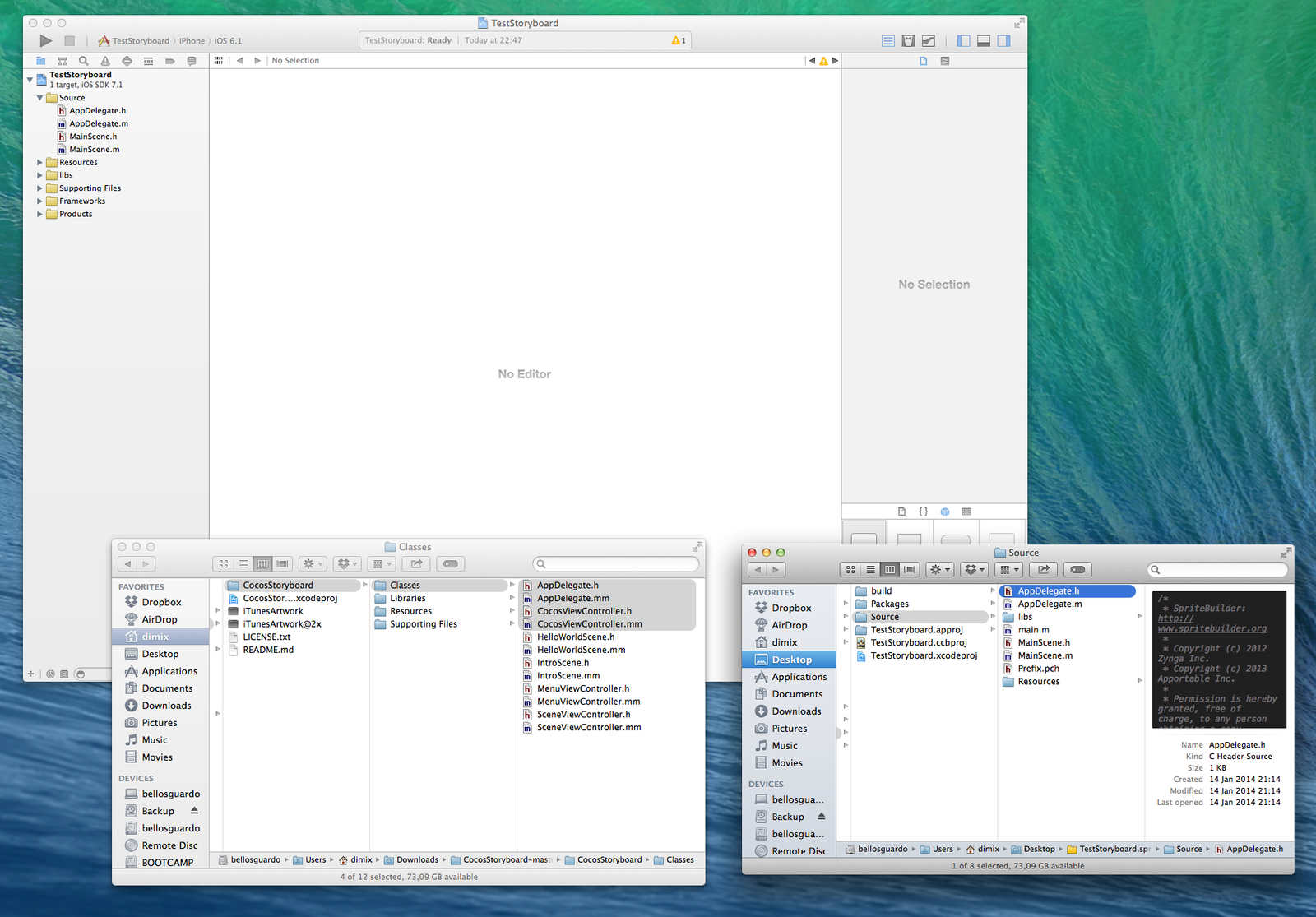

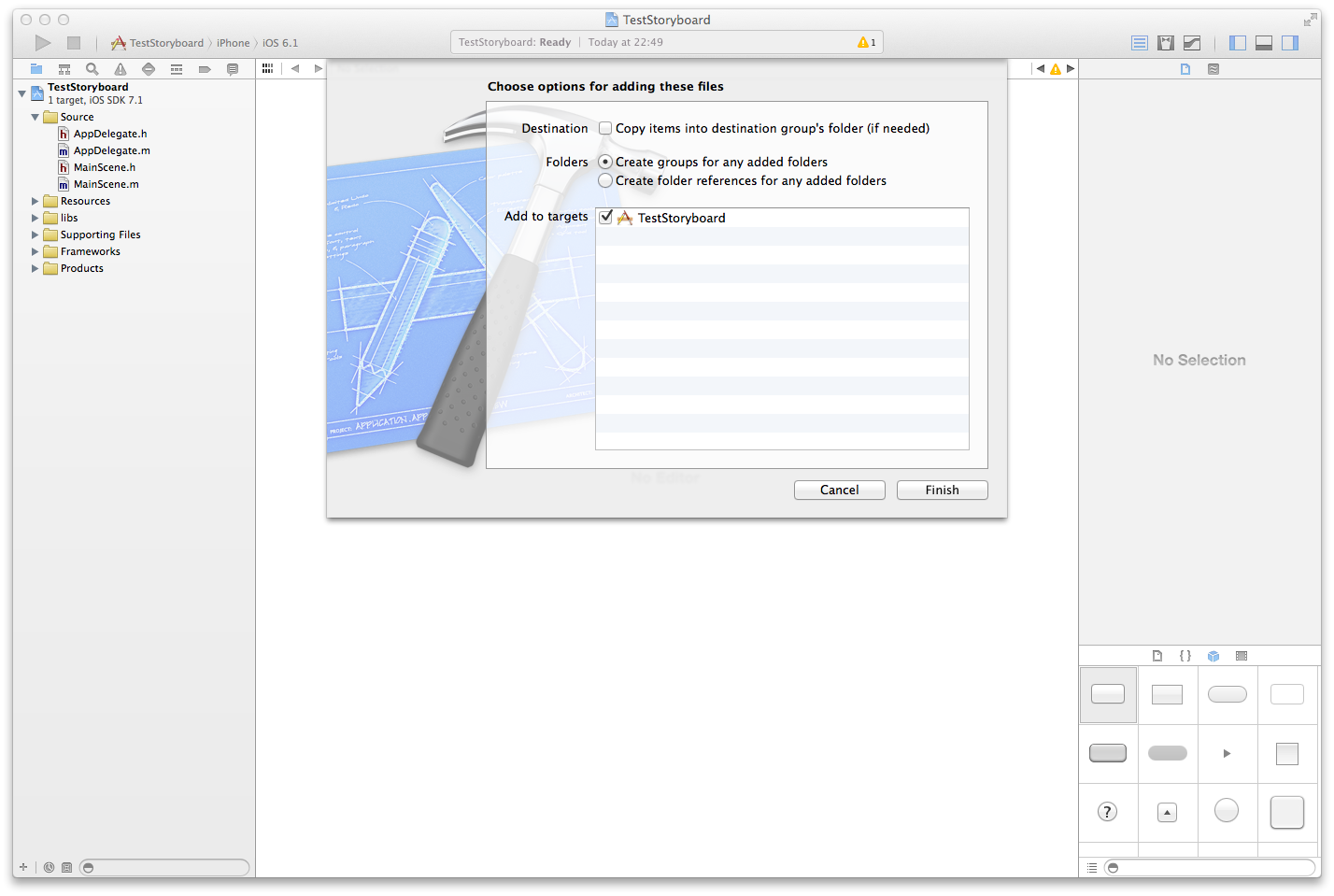

Remove AppDelegate class and replace with the one in the CocosViewController project. Then copy CocosViewController.h/mm files in your project directory and add it in the xcode project.


cvc_2

cvc_3

Now locate the file named main.mm and rename the @”AppController” string with @”AppDelegate”.
Note: you can also rename the AppDelegate class, but for this tutorial this is the fast way.

cvc_4

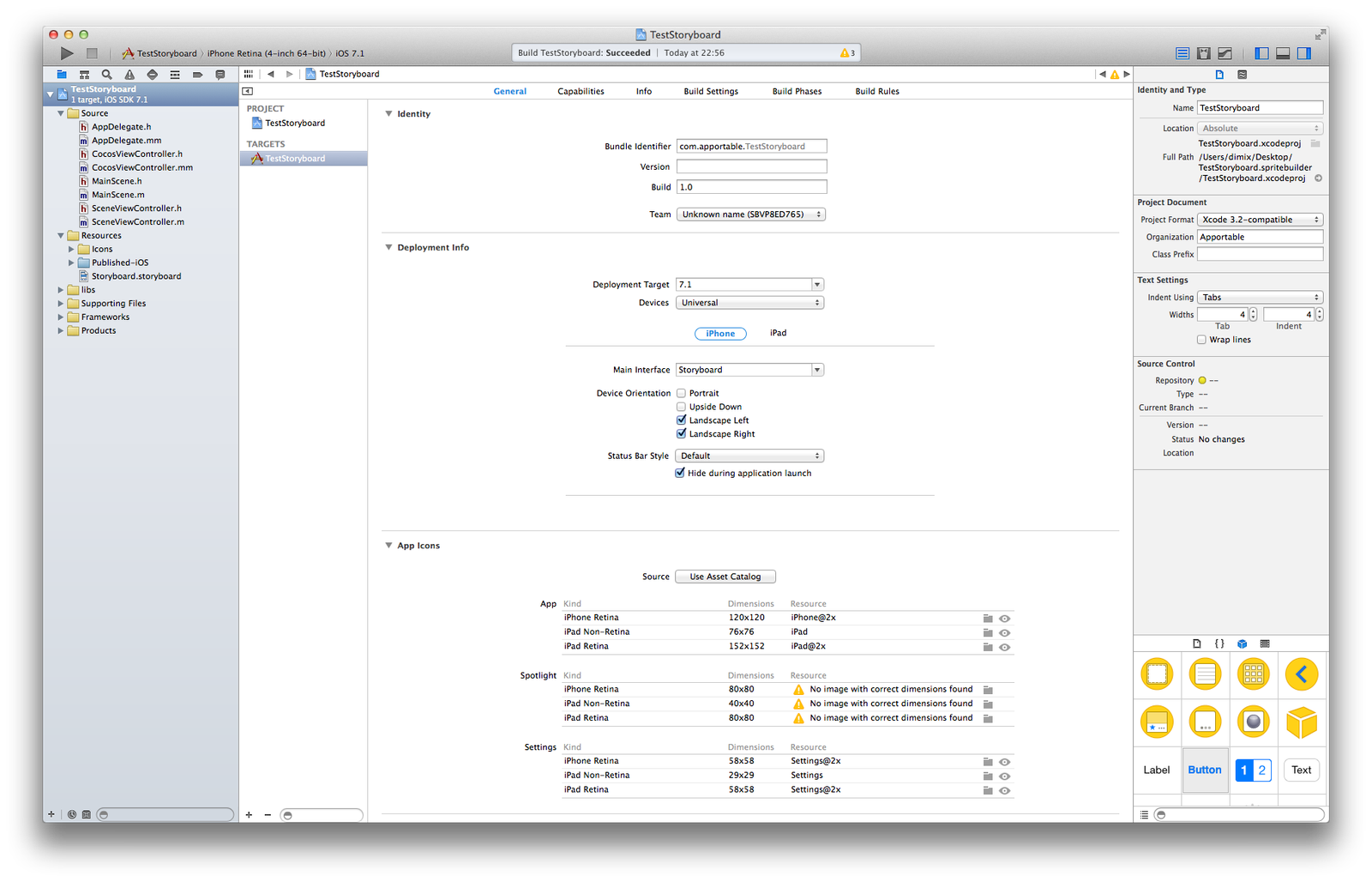

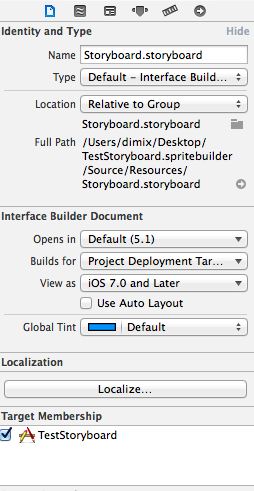

Now add a new Storyboard to the project, disable Autolayout and update the project to use iOS 6.0+ and the storyboards.

cvc_5 cvc_6

At this point you can create a new Class called SceneViewController as subclass of CocosViewController.
Add the following lines to the controller class.

@interface SceneViewController() <CocosViewControllerDelegate>
@end

@implementation SceneViewController

– (void)viewDidLoad
{
[super viewDidLoad];

self.delegate = self;
}

– (IBAction)dismiss:(id)sender
{
[self removeDirector];

[self.navigationController popViewControllerAnimated:YES];
}

#pragma mark CocosViewControllerDelegate

– (CCScene *)cocosViewControllerSceneToRun:(CocosViewController *)cocosViewController
{
return [CCBReader loadAsScene:@”MainScene”];
}

@end

You can watch at the screenshot.

cvc_7

Now go to the storyboard. Add a navigation controller, a menu view controller with a button and add the SceneViewController.
Link the navigation controller to the menu controller and the menu button to the SceneViewController with a push segue.
Now you only need to create an exit button in the SceneViewController and link to the -dismiss: method of the same controller.

cvc_8

Build and Run. If you followed all the steps you have now Cocos2D inside of a Storyboard app.

I hope you enjoy it and if you have some problems you can write here in the comments or in the Cocos2D forum post.
